TECHNOLOGY
CALIBRATED FOR SUCCESS: OUR MACHINES.

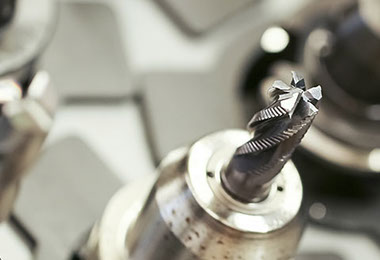

MILLING MACHINES
In the milling area we rely on the newest Hurco 3-, 4-, and 5-axis centers. Their control harmonize with our programming system and offers performance data tailored precisely to our production requirements. A standardization that increases productivity - and lowers costs for our customers.
Make 1: HURCO
Type: VMX24t
Year of construction: 2008
Vertical 4-axis CNC machining center with Winmax control
X = 610 mm Y = 510 mm Z = 610 mm
Drive: 9 kW to 12,000 rpm up to 95 Nm torque
Internally cooled spindle with air and emulsion
Make 2: HURCO
Type: VMX30i
Ýear of construction: 2020
Vertical 5-axis CNC machining center with Winmax control
X = 762 mm Y = 508 mm Z = 520 mm
Drive: 15 kW to 15,000 rpm up to 74 Nm torque
Internally cooled spindle
Make 3: HURCO
Type: VMX30UDi
Year of construction: 2022
Vertical 5-axis CNC machining center with Winmax control
X = 762 mm Y = 508 mm Z = 520 mm
Drive: 15 kW to 15,000 rpm up to 74 Nm torque
Internally cooled spindle
Make 4: Fadal
Type: VMX10
Year of construction: 2012
Vertical 3-axis CNC machining center with Winmax control
X = 660 mm Y = 405 mm Z = 510 mm
Drive: 11 kW to 10,000 rpm up to 74 Nm torque
Internally cooled spindle
Make 5: Cover FP2
Type: FP2
Year of construction: 1988
Horizontal and vertical universal table with separate spindle drives
X = 600 mm Y = 370 mm Z = 350 mm
Drive: 6,5 KW each
NC line control Heidenhain TNC 124
Top
LATHING
When it comes to lathing, we rely on CNC and cycle-controlled machines (excluding our in-house training with conventional devices). Our partnerships with Weiler and Hurco. enable us to guarantee high drive powers, flexible controls and short set-up times.
1. CNC lathe Hurco
Make: Hurco TMM8i
Year of construction: 2018
Turning∅: 250 mm
Turning length: 450 mm tailstock, Hurco WinMax-control
Spindle drilling: 54 mm
Chuck-∅: 180 mm
Drive: 26 KW
Machine is equipped with driven tools for axial and radial machining
2. CNC lathe Hurco
Make: Hurco TMM6i
Year of construction: 2022
Turning∅: 215 mm
Turning length: 360 mm tailstock, Hurco WinMax-control
Spindle drilling: 45 mm
Chuck-∅: 150 mm
Drive: 13 KW
3. CNC cycle machine Weiler
Make: Weiler Type: E 35
Year of construction: 2000
Turning∅: 410 mm
Turning length: 950 mm Tailstock, Siemens Sinumerik 840
Spindle drilling: 54 mm
Chuck-∅: 250 mm
Drive: 11 KW
4. CNC cycle machine Weiler
Make: Weiler Type: E 50
Year of construction: 2007
Turning∅: 570 mm
Turning length: 1000 mm Tailstock, Siemens Sinumerik 840
Spindle drilling: 83 mm
Chuck-∅: 250 mm
Drive: 20 KW
5. Longitudinal+pull
Make: Weiler
Type: Matador
Year of construction: 1989
Turning∅: 290 mm
Turning length: 500mm digital display
Spindle drilling: 36 mm
drive: 7,5 KW
Top
GRINDING
Our grinding machines offer you flexibility for the machining of individual parts or small batches: We cover everything from surface grinding through external cylindrical grinding to internal cylindrical grinding. Thanks to partnerships with renowned specialist firms, we can also handle the complete processing of special grinding orders for you on request.
1. External cylindrical grinding machine
Make: Fortuna
Type: ES 1500
Outside-∅ up to 320 mm
Spindle height: 175 mm Spindle width: 1500 mm Measuring control
2. Surface grinding machine
Make: Jacobsen
Type: S J 24
X = 650 mm Y = 350 mm Z = 400 mm
Magnetic plate 250x400 mm
Angular magnetic table 150x400 mm
3. Internal cylindrical grinding machine
Make: WMW
Type: SI 125
Year of construction: 1968
Grinding∅: 25 - 125 mm
Grinding length: 150 mm
Top
WORK
PREPARATION
Regarding work preparation we use a CAD-CAM system with efficient post processors on all controlled machines. Using Edgecam to program directly, we are able to convert drawing data formats like DXF, DWG, Step and many more into optimal toolpaths.

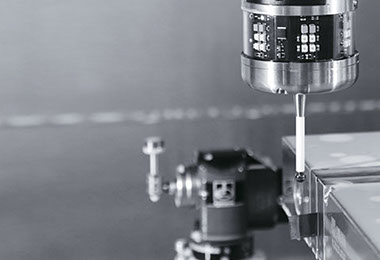

MEASURING
Manufacturing according to very strict quality standards, based on the QSV 1002/98 of Hauni-Maschinenbau AG and ISO 9001, our measuring equipment is continuously tested, calibrated and renewed. For more complex and 3D measurements we work with competent partners. In addition to precise inspection of the dimensions and appearance of all components, we also produce an in-house measurement report including the required initial sample test reports for each manufactured position at an extra charge.
If however an error should occur despite these high standards, we provide you with a quick and unbureaucratic replacement. Why? Because our success is measured by your satisfaction - since 1952.
Top
LABELING
When labeling customer components, we work gently on surfaces with a high-performance ML6 laser labeling device from Schilling. The device has a C-axis for labeling round components on the circumference. Thanks to the CAD connection, we can also laser the customer's logo if desired.
